ByteMd 主题切换功能

聊聊markdown的多主题切换如何实现

10minzh-CNAIWEB

目标

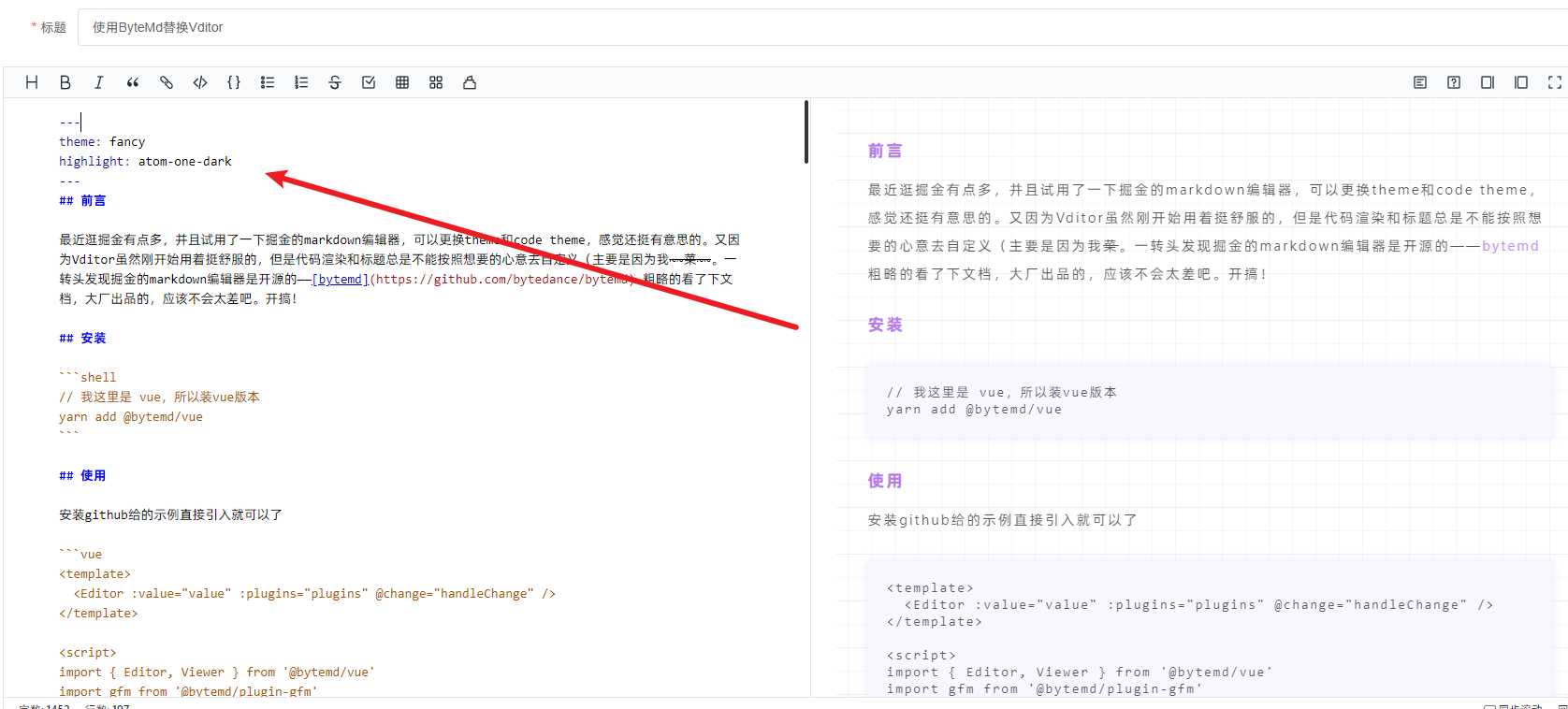

做成和掘金一样的，在toolbar栏添加markdown和highlight的主题切换，而且要尽量无感，选择>>输入

主要思路

  1. 添加toolbar：markdown和highlight主题切换
  2. 切换按钮添加点击事件，转成 yaml格式 插入到markdown文本的最前面。
  3. 通过@bytemd/plugin-frontmatter 会自动提取第一个yaml为file.frontmatter对象
  4. Viewer加载插件，通过hookViewerEffect 提取file.frontmatter对象的theme和highlight来加载指定css文件

准备

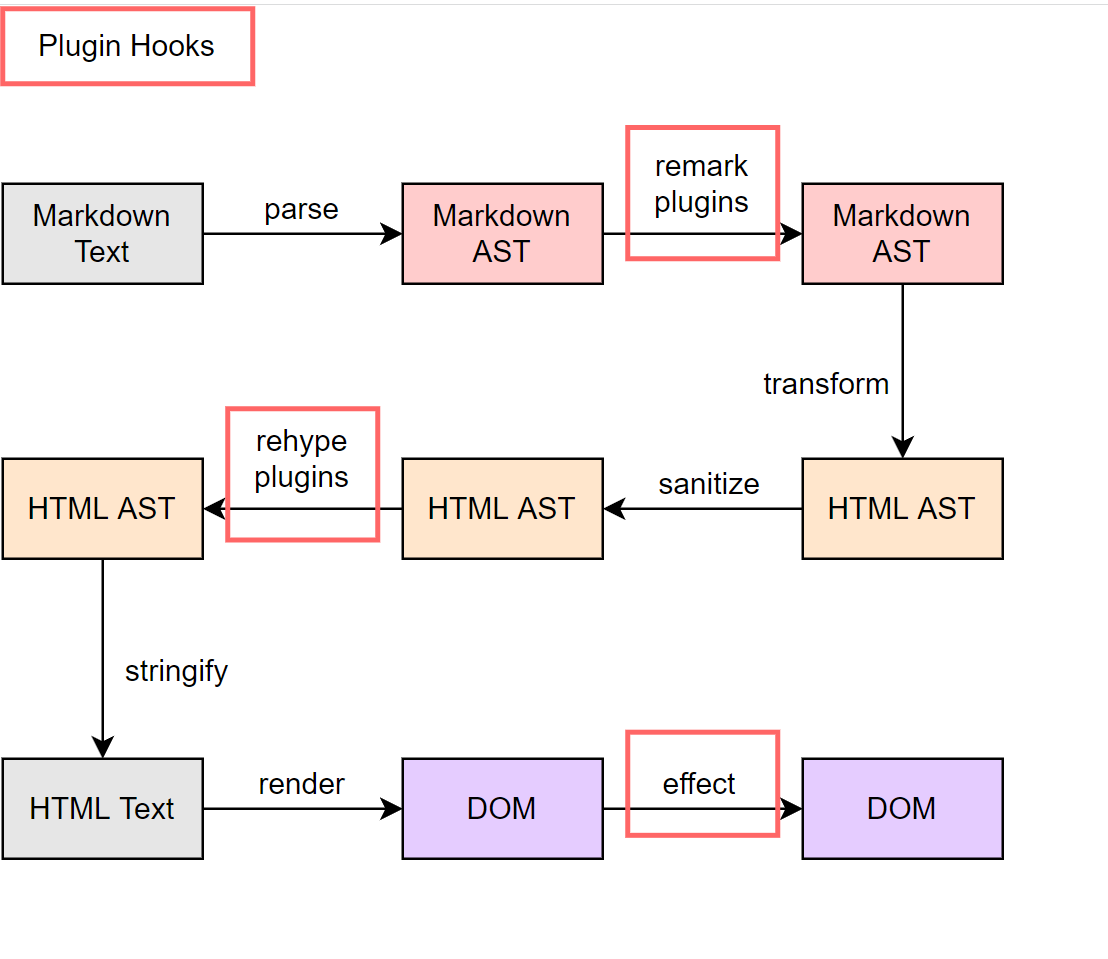

官方hooks图

根据官方的Hooks图，我们是可以在remark和rehype阶段hook函数。

gfm

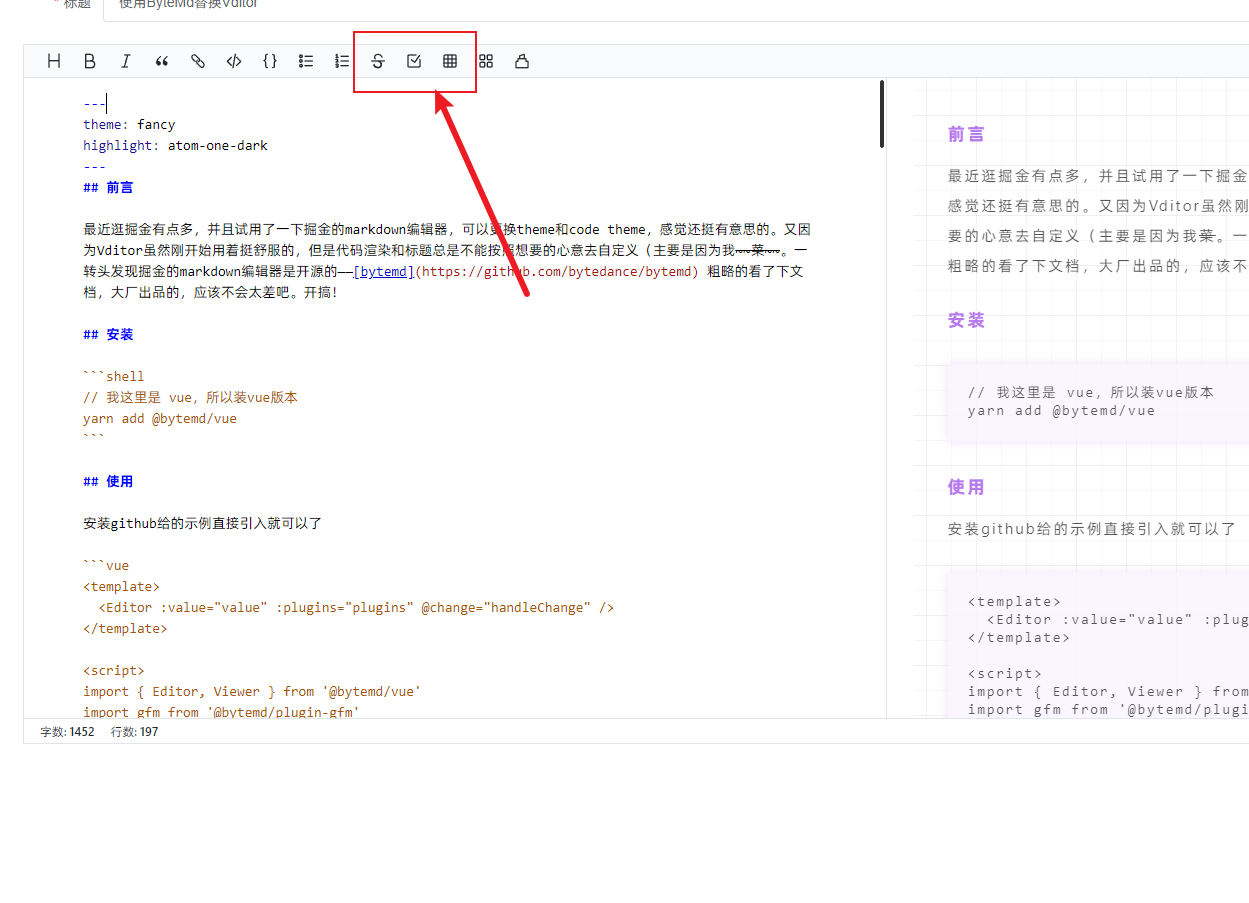

再根据官方提供的插件:@bytemd/plugin-gfm 可以看到toolbar的添加方式，这个插件就是在toolbar自定义添加了三个按钮，即（删除线、ToDo和table

我们看一下源码：

JAVASCRIPT
//index.js
import en from './locales/en.json';
import remarkGfm from 'remark-gfm';
import { icons } from './icons';
export default function gfm({ locale: _locale, ...remarkGfmOptions } = {}) {
    const locale = { ...en, ..._locale };
    return {
        //hook remark
        remark: (p) => p.use(remarkGfm, remarkGfmOptions),
        // 添加actions
        actions: [
            {
                title: locale.strike,
                icon: icons.strikethrough,
                cheatsheet: `~~${locale.strikeText}~~`,
                handler: {
                    // 类型
                    type: 'action',
                    //点击事件
                    click({ wrapText, editor }) {
                        wrapText('~~');
                        editor.focus();
                    },
                },
            },
            {
                title: locale.task,
                icon: icons.task,
                cheatsheet: `- [ ] ${locale.taskText}`,
                handler: {
                    type: 'action',
                    click({ replaceLines, editor }) {
                        replaceLines((line) => '- [ ] ' + line);
                        editor.focus();
                    },
                },
            },
            {
                title: locale.table,
                icon: icons.table,
                handler: {
                    type: 'action',

                    click({ editor, appendBlock, codemirror }) {
                        const { line } = appendBlock(`| ${locale.tableHeading} |  |\n| --- | --- |\n|  |  |\n`);
                        editor.setSelection(codemirror.Pos(line, 2), codemirror.Pos(line, 2 + locale.tableHeading.length));
                        editor.focus();
                    },
                },
            },
        ],
    };
}

这里添加了三个按钮，并且设置对应的title、icon和点击事件。大概清楚了格式。

但是现在我想要的是向下展开，不是直接点击，难道需要自己编写一个弹出层吗？

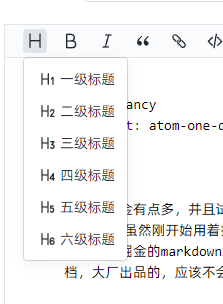

这时候我注意到了H标签：

editor.js

这不就是向下展开的吗？然后去找到了对应的bytemd/lib/editor.js文件，

JAVASCRIPT
const items = [
    {
        icon: icons.heading,
        handler: {
            type: 'dropdown',
            actions: [1, 2, 3, 4, 5, 6].map((level) => ({
                title: locale[`h${level}`],
                icon: icons[`h${level}`],
                cheatsheet: level <= 3
                ? `${'#'.repeat(level)} ${locale.headingText}`
                : undefined,
                handler: {
                    type: 'action',
                    click({ replaceLines, editor }) {
                        replaceLines((line) => {
                            line = line.trim().replace(/^#*/, '').trim();
                            line = '#'.repeat(level) + ' ' + line;
                            return line;
                        });
                        editor.focus();
                    },
                },
            })),
        },
    },
    //... more actions
]

handler.type是可以设置为dropdown的，这样就会是以展开的形式出现。

handler.actions又可以嵌套actions。

开始

根据官方的H标签的编写方式，来仿照着写一个dropdown类型的主题切换按钮。

JAVASCRIPT
//引入icons:[]
import {icons} from "./icons.js"
//引入markdown主题名称集合 ：[]
import {mdthems} from  "./mdThemes"
//引入Highlights主题名称集合：[]
import { highlights } from "./hightThems";

//暴露出去的函数
export default function customToolBar() {
  return {
    actions: [
      {
        title: "markdown主题",
        icon: icons.theme,
        handler: {
          type: "dropdown",
            //遍历并返回数组
          actions: mdThemes.map((theme) => ({
            title: theme,
            //不需要图标，就留空了
            icon: "",
            cheatsheet: undefined,
            handler: {
              type: "action",
              click({ editor }) {
                  //点击事件 是编辑器对象
                  // code here
              },
            },
          })),
        },
      },
      {
        title: "代码高亮样式",
        icon: icons.code_theme,
        handler: {
          type: "dropdown",
          actions: highlights.map((theme) => ({
            title: theme,
            handler: {
              type: "action",
              click({ editor }) {
                  //点击事件 editor 是编辑器对象
                  // code here
              },
            },
          })),
        },
      },
    ],
  };
}

这样 大致框架就搭建 完了，完成了绑定好了对应的点击事件，现在需要解析

Editor对应文件

customTheme.js

JAVASCRIPT
import { icons } from "./icons";
import { highlights } from "./highThems";
import { mdThemes } from "./mdThemes";
//highlight css cdn
const CODE_URL = "//cdnjs.cloudflare.com/ajax/libs/highlight.js/10.5.0/styles/";
// markdown主题的cdn地址
const THEME_URL = "// markdowntheme";
//设置默认主题
const CONFIG = {
  theme: "channing-cyan",
  highlight: "atom-one-dark",
};

const changeTheme = (themename) => {
  // 判断是否存在？
  const mdTheme =
    document.head.querySelector("#MD_THEME") || document.createElement("link");
  mdTheme.id = "MD_THEME";
  mdTheme.rel = "stylesheet";
  mdTheme.href = `${THEME_URL}${themename}.min.css`;
  document.head.contains(mdTheme) ? "" : document.head.appendChild(mdTheme);
};

const changeCode = (themename) => {
  // 判断是否存在？
  const codeTheme =
    document.head.querySelector("#CODE_THEME") ||
    document.createElement("link");
  codeTheme.id = "CODE_THEME";
  codeTheme.rel = "stylesheet";
  codeTheme.href = `${CODE_URL}${themename}.min.css`;
  document.head.contains(codeTheme) ? "" : document.head.appendChild(codeTheme);
};

/**
 * 解析内容 并修改config对象
 * @param {*} editor
 * @returns
 */
const parseConfig = (editor) => {
  let evalue = editor.getValue();
  // 匹配 --- ? ---
  const reg = /---\n(.+\n)+---\n/;

  try {
    reg
      .exec(evalue)[0]
      .split("\n")
      .filter((item) => item != "---" && item != "")
      .forEach((item) => {
        const _temp = item.split(": ");
        CONFIG[_temp[0]] = _temp[1];
      });
  } catch (error) {
    console.log("解析当前主题失败，使用默认配置");
  }
};

/**
 * 获取除了配置文件之外的内容
 * @param {}} value
 */
const getRealValue = (value) => {
  const res = /---\n(.+\n)+---\n/.exec(value);
  return res == null ? value : value.substring(res[0].length);
};

/**
 * 将配置文件转换为markdown并返回
 * @param {*} editor
 * @returns txt
 */
const configStringify = (editor) => {
  return `---
theme: ${CONFIG.theme}
highlight: ${CONFIG.highlight}
---
${getRealValue(editor.getValue())}
`;
};
export default function customTheme() {
  changeCode("atom-one-dark");
  changeTheme("cyanosis");
  return {
    actions: [
      {
        title: "markdown主题",
        icon: icons.theme,
        handler: {
          type: "dropdown",
          actions: mdThemes.map((theme) => ({
            title: theme,
            icon: "",
            cheatsheet: undefined,
            handler: {
              type: "action",
              click({ editor }) {
                changeTheme(theme);
                parseConfig(editor);
                CONFIG.theme = theme;
                editor.setValue(configStringify(editor));
              },
            },
          })),
        },
      },
      {
        title: "代码高亮样式",
        icon: icons.code_theme,
        handler: {
          type: "dropdown",
          actions: highlights.map((theme) => ({
            title: theme,
            handler: {
              type: "action",
              click({ editor }) {
                changeCode(theme);
                parseConfig(editor);
                CONFIG.highlight = theme;
                editor.setValue(configStringify(editor));
              },
            },
          })),
        },
      },
    ],
  };
}

icons.js

JAVASCRIPT
export const icons = {
  theme:
    '<svg width="16" height="16" viewBox="0 0 16 16" fill="none" xmlns="http://www.w3.org/2000/svg"><path d="M6 2H2.66667C2.29848 2 2 2.29848 2 2.66667V6C2 6.36819 2.29848 6.66667 2.66667 6.66667H6C6.36819 6.66667 6.66667 6.36819 6.66667 6V2.66667C6.66667 2.29848 6.36819 2 6 2Z" stroke="#1D2129" stroke-width="1.33" stroke-linejoin="round"></path><path d="M6 9.3335H2.66667C2.29848 9.3335 2 9.63197 2 10.0002V13.3335C2 13.7017 2.29848 14.0002 2.66667 14.0002H6C6.36819 14.0002 6.66667 13.7017 6.66667 13.3335V10.0002C6.66667 9.63197 6.36819 9.3335 6 9.3335Z" stroke="#1D2129" stroke-width="1.33" stroke-linejoin="round"></path><path d="M13.3334 2H10C9.63185 2 9.33337 2.29848 9.33337 2.66667V6C9.33337 6.36819 9.63185 6.66667 10 6.66667H13.3334C13.7016 6.66667 14 6.36819 14 6V2.66667C14 2.29848 13.7016 2 13.3334 2Z" stroke="#1D2129" stroke-width="1.33" stroke-linejoin="round"></path><path d="M13.3334 9.3335H10C9.63185 9.3335 9.33337 9.63197 9.33337 10.0002V13.3335C9.33337 13.7017 9.63185 14.0002 10 14.0002H13.3334C13.7016 14.0002 14 13.7017 14 13.3335V10.0002C14 9.63197 13.7016 9.3335 13.3334 9.3335Z" stroke="#1D2129" stroke-width="1.33" stroke-linejoin="round"></path></svg>',
  code_theme:
    '<svg width="24" height="24" viewBox="0 0 48 48" fill="none" xmlns="http://www.w3.org/2000/svg"><rect width="48" height="48" fill="white" fill-opacity="0.01"></rect><path d="M6 44L6 25H12V17H36V25H42V44H6Z" fill="none" stroke="#333" stroke-width="4" stroke-linejoin="round"></path><path d="M17 17V8L31 4V17" stroke="#333" stroke-width="4" stroke-linecap="round" stroke-linejoin="round"></path></svg>',
};

mkTheme.js

JAVASCRIPT
export const mdThemes = [
  "smartblue",
  "cyanosis",
  "channing-cyan",
  "fancy",
  "hydrogen",
  "condensed-night-purple",
  "greenwillow",
  "v-green",
  "vue-pro",
  "healer-readable",
  "mk-cute",
  "jzman",
  "geek-black",
  "awesome-green",
  "orange",
  "scrolls",
  "simplicity-green",
  "arknights",
  "vuepress",
  "Chinese-red",
  "nico",
  "devui-blue",
];

highThems.js

JAVASCRIPT
export const highlights = [
  "atom-one-dark",
  "darcula",
  "github",
  "monokai-sublime",
  "hybrid",
  "night-owl",
  "srcery",
  "idea",
  "shades-of-purple",
  "xcode",
];

组件中使用

Vue
<template>
    <div class="byte-Editor">
        <Editor
			:value="content"
			:plugins="plugins"
			...
        >
        </Editor>
	</div>
</template>

<script>
//引入css文件
import "bytemd/dist/index.min.css";
//引入Viewer
import { Editor } from "@bytemd/vue";
// 初始化theme 加载theme.css
import customTheme from "../../common/bytemd/pugins/customTheme";
import frontmatter from "@bytemd/plugin-frontmatter";
import highlightSsr from "@bytemd/plugin-highlight-ssr";
// more plugins

const plugins=[
    frontmatter(),
    highlightSsr(),
    customTheme(),
    ...
]

export default{
	data(){
        return {
            plugins，
            content:"..."
            ...
        }
    }
}
</script>
...

Viewer对应的文件

initTheme.js

JAVASCRIPT
//highlight css cdn
const CODE_URL = "//cdnjs.cloudflare.com/ajax/libs/highlight.js/10.5.0/styles/";
// markdown主题的cdn地址
const THEME_URL = "// markdowntheme";

export default function initTheme() {
  return {
    viewerEffect({ file }) {
      const themes = file.frontmatter || {
        theme: "channing-cyan",
        highlight: "atom-one-dark",
      };
      const codeTheme =
        document.head.querySelector("#CODE_THEME") ||
        document.createElement("link");
      codeTheme.id = "CODE_THEME";
      codeTheme.rel = "stylesheet";
      codeTheme.href = `${CODE_URL}${themes.highlight}.min.css`;
      document.head.contains(codeTheme)
        ? ""
        : document.head.appendChild(codeTheme);
      const mdTheme =
        document.head.querySelector("#MD_THEME") ||
        document.createElement("link");
      mdTheme.id = "MD_THEME";
      mdTheme.rel = "stylesheet";
      mdTheme.href = `${THEME_URL}${themes.theme}.min.css`;
      document.head.contains(mdTheme) ? "" : document.head.appendChild(mdTheme);
    },
  };
}

组价中使用

Vue
<template>
    <div class="byte-Viewer">
        <Viewer
			:value="content"
			:plugins="plugins"
			...
        >
        </Viewer>
	</div>
</template>

<script>
//引入css文件
import "bytemd/dist/index.min.css";
//引入Viewer
import { Viewer } from "@bytemd/vue";
// 初始化theme 加载theme.css
import initTheme from "../../common/bytemd/pugins/initTheme";
import frontmatter from "@bytemd/plugin-frontmatter";
// more plugins

const plugins=[
    initTheme(),
    frontmatter(),
    ...

]

export default{
	data(){
        return {
            plugins，
            content:"..."
            ...
        }
    }
}
</script>
